High-side driver
PackageSOIC
Current1.5mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Stmicroelectronics VN800PS-E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Stmicroelectronics VN800PS-E technical specifications.
General
| Package/Case | SOIC |
| Max Input Voltage | 36V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 4.2W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| On-State Resistance | 135mR |
| Operating Supply Voltage | 36V |
| Output Current per Channel | 700mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | VIPower™ |
| Supply Current | 1.5mA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VN800PS-E Datasheet
Download the complete datasheet for Stmicroelectronics VN800PS-E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

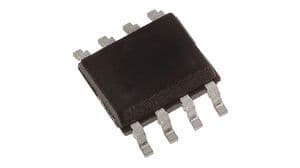

Product Images
