Current25mA
MountingSurface Mount
Power65.8W
Quick Jump:
Technical Specifications
Stmicroelectronics VN820-B513TR technical specifications.
General
Drain to Source Resistance
80mR
Fault Protection
Over Voltage, Over Temperature
Interface
On/Off
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Power Dissipation
65.8W
Max Supply Current
3.5mA
Max Supply Voltage
36V
Min Supply Voltage
5.5V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Number of Outputs
1
Output Configuration
High Side
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
65.8W
Radiation Hardening
No
RoHS Compliant
No
Supply Current
25mA
Turn-Off Delay Time
30000ns
Turn-On Delay Time
30000ns
Compliance
RoHS
Not CompliantNo
Datasheet
Stmicroelectronics VN820-B513TR Datasheet
Download the complete datasheet for Stmicroelectronics VN820-B513TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

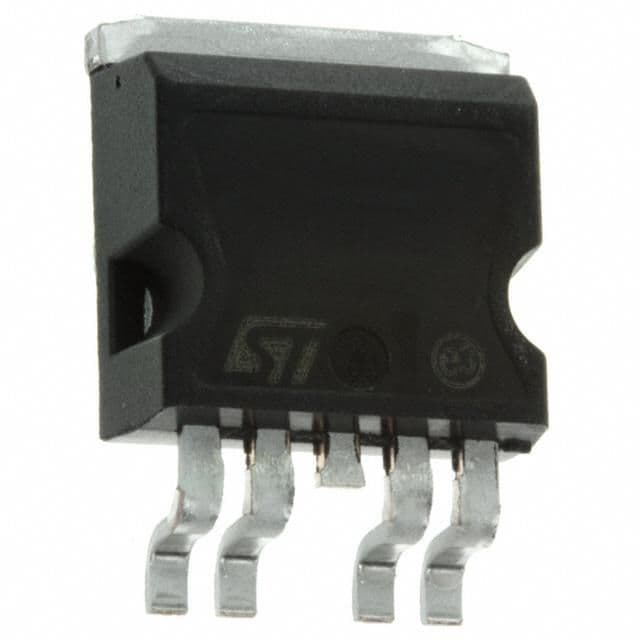

Product Images
