Automotive current limit switch featuring a 5.5V to 36V operating supply voltage range and a 30A continuous output current capability, with a maximum output current of 45A per channel. This surface mount device offers a low 16mR on-state resistance and a maximum power dissipation of 96.1W. Operating across a temperature range of -40°C to 150°C, it includes 50 units per package in rail/tube packaging.
Voltage36V
Current30A
MountingSurface Mount
Power96.1W
Quick Jump:
Technical Specifications
Stmicroelectronics VN920B5-E technical specifications.
General
| Current | 30A |
| Height | 4.8mm |
| Length | 10.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 45A |
| Max Power Dissipation | 96.1W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 16mR |
| Operating Supply Voltage | 13V |
| Output Current | 30A |
| Output Current per Channel | 45A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 96.1W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | VIPower™ |
| Supply Current | 5mA |
| Turn-Off Delay Time | 50us |
| Turn-On Delay Time | 50us |
| Voltage | 36V |
| Width | 9.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VN920B5-E Datasheet
Download the complete datasheet for Stmicroelectronics VN920B5-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

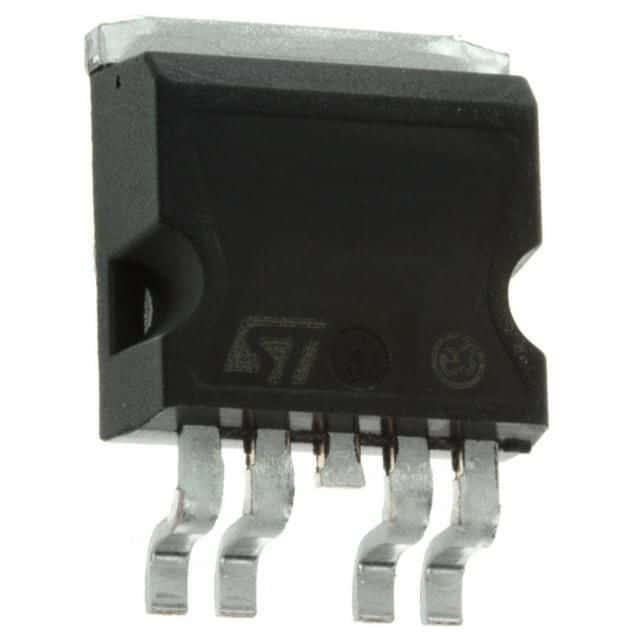

Product Images
