Stmicroelectronics
VNB10N07-E
Current Limit SW 1-IN 1-OUT to 18V 120A Automotive 3-Pin(2+Tab) D2PAK Tube
PackageD2PAK
Current250uA
MountingSurface Mount
Power50W
Quick Jump:
Technical Specifications
Stmicroelectronics VNB10N07-E technical specifications.
General
| Package/Case | D2PAK |
| Continuous Drain Current (ID) | 10A |
| Drain to Source Breakdown Voltage | 10V |
| Drain to Source Resistance | 140mR |
| Max Output Current | 10A |
| Max Power Dissipation | 50W |
| Max Supply Current | 250uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| On-State Resistance | 100mR |
| Operating Supply Voltage | 18V |
| Output Current | 7A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 50W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | OMNIFET™ |
| Supply Current | 250uA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VNB10N07-E Datasheet
Download the complete datasheet for Stmicroelectronics VNB10N07-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

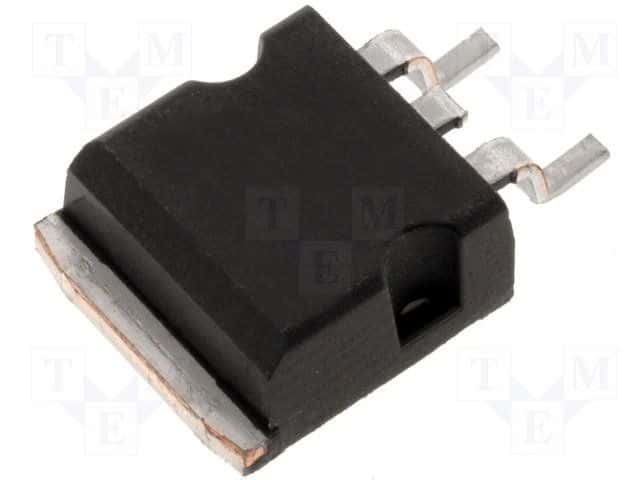

Product Images
