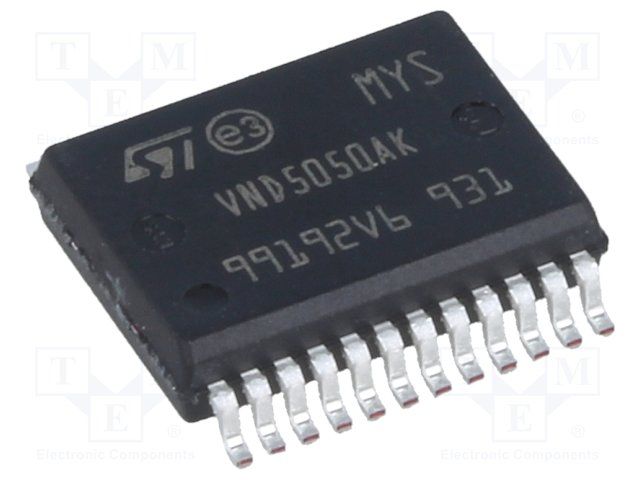

The VND5050AK-E is a dual high-side driver from Stmicroelectronics, featuring a maximum output current of 12A and a maximum supply voltage of 36V. It operates over a temperature range of -40°C to 150°C and is packaged in a 24-pin HSSOP package. The device is RoHS compliant and lead-free, with a supply current of 3mA. The turn-on and turn-off delay times are 25us and 35us, respectively.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics VND5050AK-E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Fault Protection | Over Voltage, Over Temperature |
| Height | 2.4mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Supply Current | 5uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Configuration | High Side |
| Package Quantity | 49 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | VIPower™ |
| Supply Current | 3mA |
| Turn-Off Delay Time | 35us |
| Turn-On Delay Time | 25us |
| Width | 7.6mm |
| RoHS | Compliant |
