MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics VNQ7140AJTR-E technical specifications.
General
Fault Protection
Over Voltage, Over Temperature
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
8A
Max Supply Current
16mA
Max Supply Voltage
28V
Min Supply Voltage
4V
Mount
Surface Mount
Number of Drivers
4
Number of Outputs
4
Output Configuration
High Side
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
VIPower™
Turn-Off Delay Time
100000ns
Turn-On Delay Time
120000ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VNQ7140AJTR-E Datasheet
Download the complete datasheet for Stmicroelectronics VNQ7140AJTR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

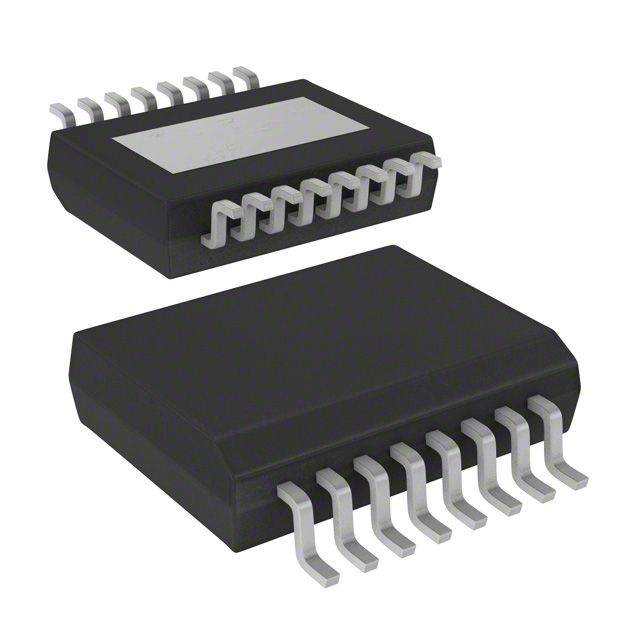

Product Images
