Stmicroelectronics
Z0103MN5AA4
600V, 1A, 4 QUADRANT LOGIC LEVEL TRIAC, ROHS COMPLIANT, PLASTIC PACKAGE-4

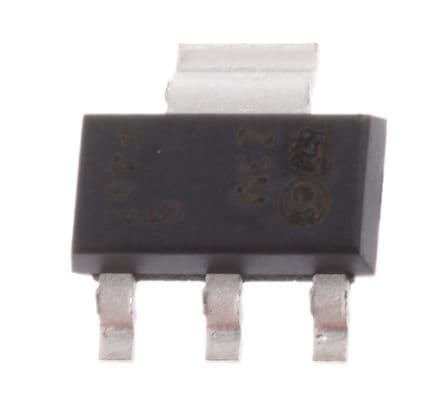

PackageSOT-223
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics Z0103MN5AA4 technical specifications.
General
| Package/Case | SOT-223 |
| Current Rating | 1A |
| Height | 1.8mm |
| Hold Current | 7mA |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1A |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 600V |
| Weight | 0.006632oz |
| Width | 3.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics Z0103MN5AA4 Datasheet
Download the complete datasheet for Stmicroelectronics Z0103MN5AA4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
