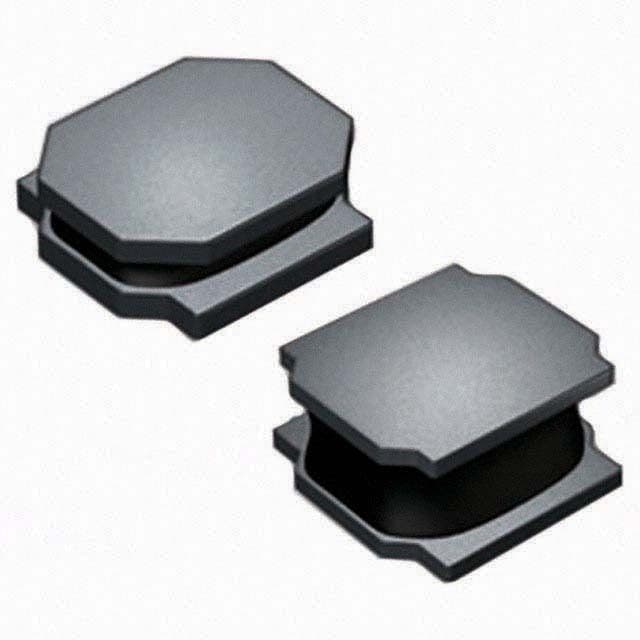

The Taiyo Yuden NRS3015T2R2MNGH is a shielded surface mount inductor with a current rating of 1.5A and a DC resistance of 58mR. It features a ferrite core material and a self-resonant frequency of 64MHz. The inductor is available in a nonstandard package with dimensions of 0.118inch in length and width, and 0.059inch in height. It operates over a temperature range of -25°C to 120°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.5A |
| DC Resistance (DCR) | 58mR |
| Height - Seated (Max) | 0.059inch |
| Inductance | 2.2uH |
| Length | 0.118inch |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 1.48A |
| Self Resonant Frequency | 64MHz |
| Series | NR, S Type |
| Shielding | Shielded |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.118inch |
| RoHS | Compliant |
