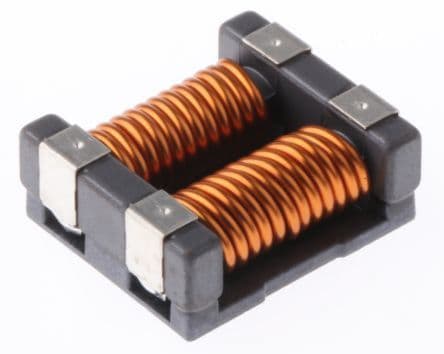

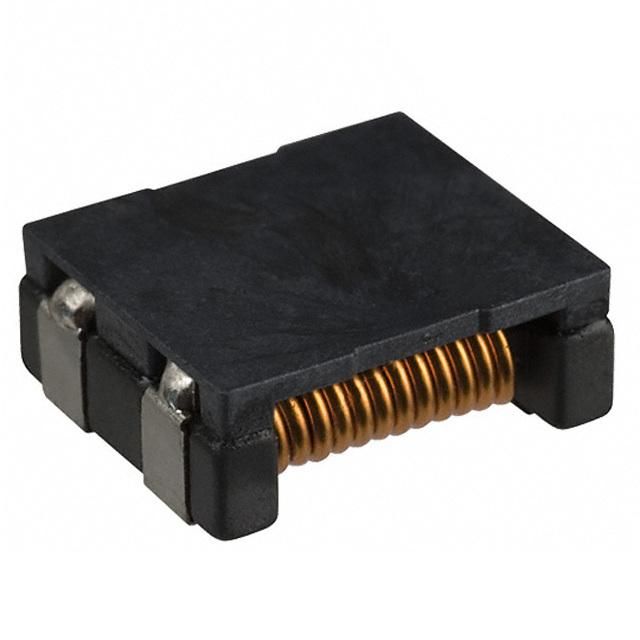

Dual common mode choke for power and signal lines, featuring 550 Ohm impedance at 100MHz and a 10A current rating. This surface mount component offers a low DC resistance of 4mR and a DC rated voltage of 50V. Designed for reliable operation between -40°C and 85°C, it is packaged in a 6052 case size and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ACM1513-551-2PL-TL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 6052 |
| Current | 10A |
| Current Rating | 10A |
| DC Resistance (DCR) | 4mR |
| DC Resistance-Max | 4MR |
| Depth | 6mm |
| Height | 6mm |
| Impedance | 550R |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Current Rating | 10A |
| Max DC Current | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ACM |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.512inch |
| RoHS | Compliant |
Download the complete datasheet for TDK ACM1513-551-2PL-TL to view detailed technical specifications.
