Surface mount ferrite chip for data line EMI/RFI filtering. Features 2 functions, 90 Ohm impedance at 100MHz, and a 20V DC rated voltage. Rated for 300mA maximum DC current, with a maximum DC resistance of 190mR. Operates across a temperature range of -40°C to 85°C. Housed in an 0805 package with SMD/SMT termination.
Package0805
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK ACM2012D-900-2P-T00 technical specifications.
General
| Package/Case | 0805 |
| Current Rating | 300mA |
| DC Resistance-Max | 190mR |
| Depth | 1.4mm |
| Height | 1.3mm |
| Impedance | 90R |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Current Rating | 300mA |
| Max DC Current | 400mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ACM-D |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Voltage Rating | 50V |
| DC Rated Voltage | 20V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK ACM2012D-900-2P-T00 Datasheet
Download the complete datasheet for TDK ACM2012D-900-2P-T00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

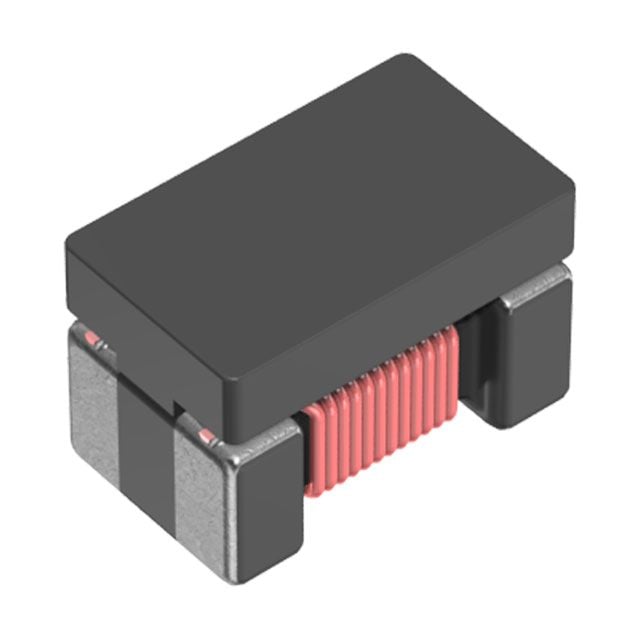

Product Images
