Surface mount data line filter, 2 functions, 50V, 1.5A. Features 1.4kΩ impedance at 100MHz, 80mΩ maximum DC resistance, and a 1.7A maximum current rating. Operates within a -40°C to +85°C temperature range. Packaged in an 1808 case size with tape and reel packaging. RoHS compliant.
Package1808
Voltage Rating50V
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK ACM4520-142-2P-T000 technical specifications.
General
| Package/Case | 1808 |
| Current Rating | 1.5A |
| DC Current | 1.5A |
| DC Resistance (DCR) | 80mR |
| DC Resistance-Max | 80mR |
| Depth | 4.7mm |
| Height | 2mm |
| Impedance | 1.4kR |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Current Rating | 1.7A |
| Max DC Current | 1.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ACM |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK ACM4520-142-2P-T000 Datasheet
Download the complete datasheet for TDK ACM4520-142-2P-T000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

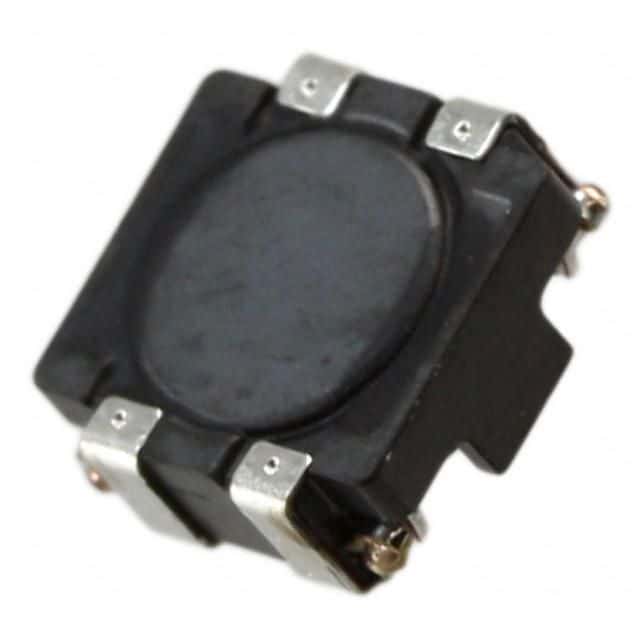

Product Images
