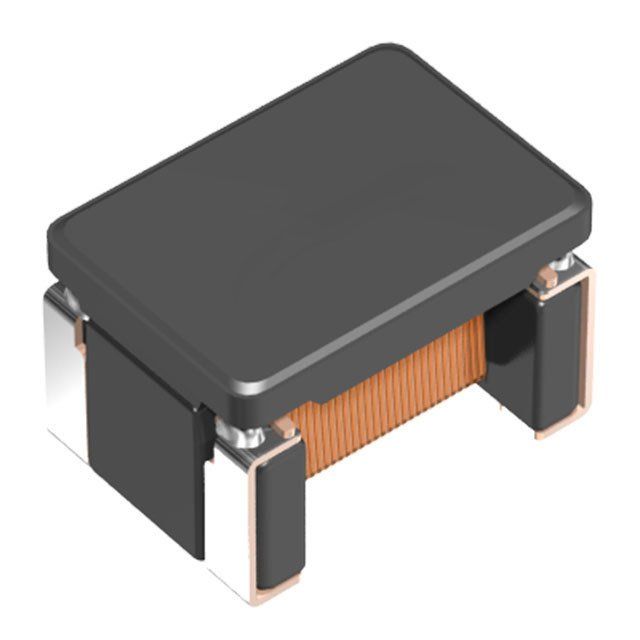

Dual 100µH common mode choke for power and signal lines, featuring 5.8kΩ impedance at 100kHz and a 150mA current rating. This surface mount component utilizes a ferrite core and offers 2Ω DC resistance (DCR) with a 50V DC rated voltage. Designed for automotive applications, it operates within a -40°C to +150°C temperature range and is supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ACT45B-101-2P-TL003 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ACT45B-101-2P-TL003 technical specifications.
| Case Code (Imperial) | 1812 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current Rating | 150mA |
| DC Current | 150mA |
| DC Resistance (DCR) | 3R |
| Depth | 3.4mm |
| Height | 3mm |
| Impedance | 5.8kR |
| Inductance | 100uH |
| Inductance Tolerance | -30% |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Current Rating | 150mA |
| Max DC Current | 150mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 150mA |
| RoHS Compliant | Yes |
| Series | ACT |
| Series Resistance | 2R |
| Termination | SMD/SMT |
| Test Frequency | 10MHz |
| Tolerance | 50% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000952oz |
| Width | 3.2mm |
| RoHS | Compliant |
