Dual 11µH common mode choke for power and signal lines, featuring 600Ω impedance at 10MHz and a 250mA current rating. This surface mount component offers a low 600mΩ DC resistance and operates across a wide temperature range of -40°C to 150°C. Designed for automotive applications with AEC-Q200 qualification, it is supplied in an 1812 package on tape and reel. The component is RoHS compliant and rated for 50V.
Package1812
Voltage Rating50V
Current Rating250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK ACT45B-110-2P-TL003 technical specifications.
General
| Package/Case | 1812 |
| Current Rating | 250mA |
| DC Current | 250mA |
| DC Resistance (DCR) | 600mR |
| Depth | 3.4mm |
| Height | 3mm |
| Impedance | 600R |
| Inductance | 11uH |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Current Rating | 250mA |
| Max DC Current | 250mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ACT |
| Termination | SMD/SMT |
| Test Frequency | 10MHz |
| Tolerance | 50% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK ACT45B-110-2P-TL003 Datasheet
Download the complete datasheet for TDK ACT45B-110-2P-TL003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

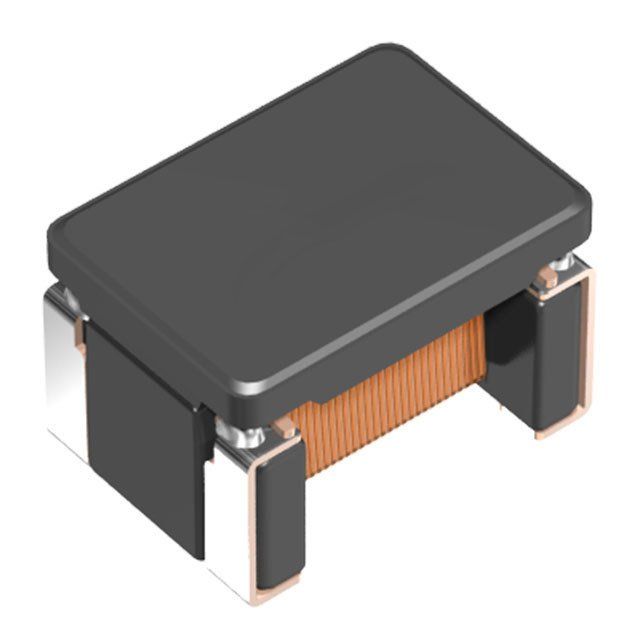

Product Images
