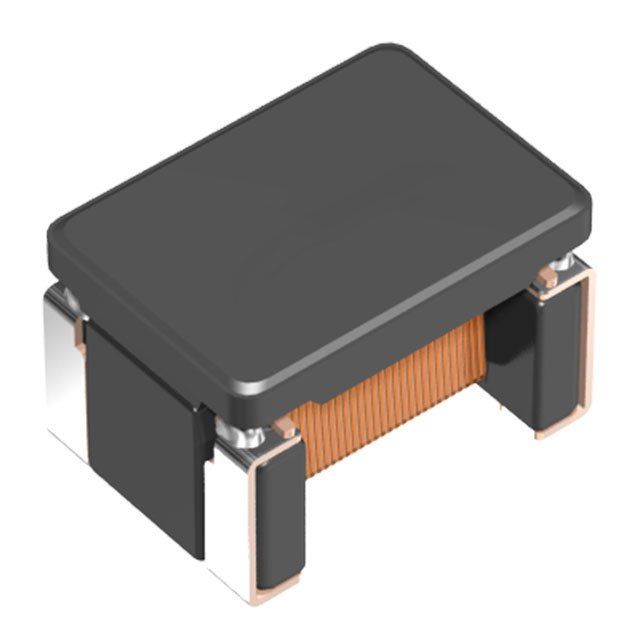

Dual 22µH common mode choke for power and signal lines, featuring 1.2kΩ impedance at 10MHz and a 200mA current rating. This surface mount component offers a low 1Ω DC resistance and operates within a -40°C to 150°C temperature range. Designed for automotive applications with AEC-Q200 qualification, it comes in an 1812 package and is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ACT45B-220-2P-TL003 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ACT45B-220-2P-TL003 technical specifications.
| Package/Case | 1812 |
| Current Rating | 200mA |
| DC Current | 200mA |
| DC Resistance (DCR) | 1R |
| DC Resistance-Max | 1R |
| Depth | 3.4mm |
| Height | 3mm |
| Impedance | 1.2kR |
| Inductance | 22uH |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Current Rating | 200mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ACT |
| Termination | SMD/SMT |
| Test Frequency | 10MHz |
| Tolerance | 50% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 3.2mm |
| RoHS | Compliant |
Download the complete datasheet for TDK ACT45B-220-2P-TL003 to view detailed technical specifications.
