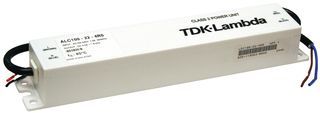

Enclosed AC/DC LED driver delivering 1.7A constant current at up to 48V output voltage, providing 82W maximum output power. Features include over-voltage, over-current, and short-circuit protection, with 87% efficiency and 3kV isolation voltage. Designed for chassis or panel mounting with wire lead termination, this unit operates from -30°C to 70°C and holds UL, CSA, CE, and EN approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ALC80481R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ALC80481R7 technical specifications.
| Approvals | UL, CSA, CE, EN |
| Current - Output 1 | 1.7A |
| Depth | 35.4mm |
| Efficiency | 87% |
| Features | OVP, OCP, SCP |
| Height | 35mm |
| Isolation Voltage | 3kV |
| Length | 241mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1.7A |
| Max Output Power | 81.6W |
| Max Power Dissipation | 82W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 48V |
| Number of Outputs | 1 |
| Output Power | 82W |
| Output Voltage | 48V |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | ALC80 (80W) |
| Termination | Wire Leads |
| Voltage - Output 1 | 48V |
| Weight | 1.1lb |
| Width | 43.1mm |
| RoHS | Compliant |
