Surface mount varistor with a 16V DC rated voltage and 22V varistor voltage. Features a 0.1J energy rating, 2A clamping current, and 48A max surge current. Encased in a 1608 (0603) metric/imperial case code, this zinc-based component operates from -40°C to 125°C. Packaged on tape and reel, it is RoHS compliant.
Package0603
Capacitance560pF
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK AVR-M1608C220KT6AB technical specifications.
General
| Capacitance | 560pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Clamping Current | 2A |
| Clamping Voltage | 34V |
| Energy | 0.1J |
| Lead Free | Lead Free |
| Material | Zinc |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 48A |
| Max Varistor Voltage | 24.2V |
| Min Varistor Voltage | 19.8V |
| Max Voltage Rating (DC) | 16V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | AVR-M |
| Size Code | 0603 |
| Termination | SMD/SMT |
| Varistor Voltage | 22V |
| Voltage Rating (AC) | 22V |
| DC Rated Voltage | 16V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK AVR-M1608C220KT6AB Datasheet
Download the complete datasheet for TDK AVR-M1608C220KT6AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

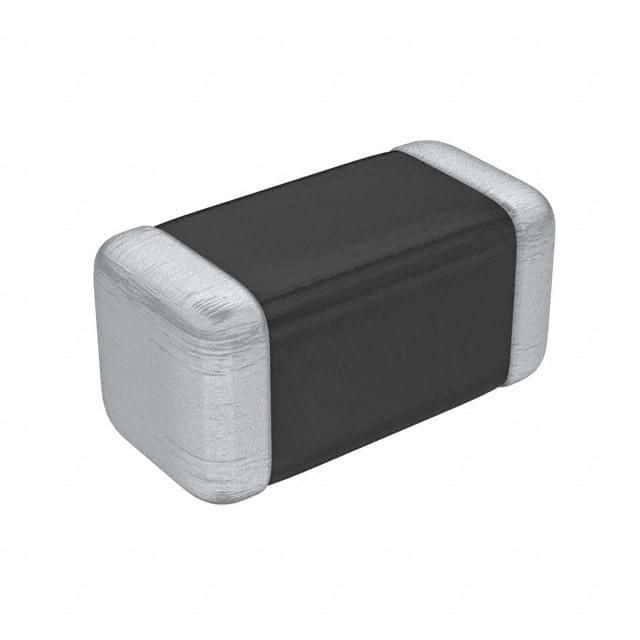

Product Images
