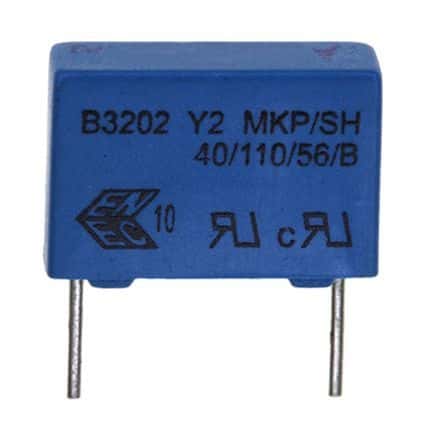

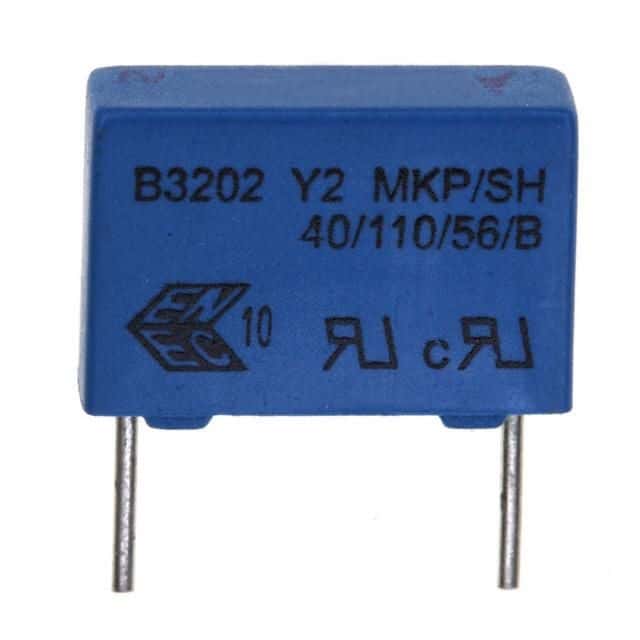

Radial leaded, through-hole mount metallized film capacitor featuring a polypropylene dielectric. This component offers a capacitance of 10nF with a 20% tolerance and a voltage rating of 1.5kV (AC 300V). It has a maximum operating temperature of 110°C and a dissipation factor of 1%. Dimensions include a 10mm lead pitch, 0.6mm lead diameter, 6mm depth, 12mm height, and 13mm length. RoHS compliant.
Sign in to ask questions about the TDK B32021A3103M000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK B32021A3103M000 technical specifications.
| Capacitance | 10nF |
| Package/Case | Radial |
| Depth | 6mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Dissipation Factor | 1% |
| Height | 12mm |
| Lead Diameter | 0.6mm |
| Lead Length | 6mm |
| Lead Pitch | 10mm |
| Length | 13mm |
| Max Operating Temperature | 110°C |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32021 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 1.5kV |
| Voltage Rating (AC) | 300V |
| RoHS | Compliant |
