Radial leaded, through-hole mount metallized film capacitor featuring a polypropylene dielectric. This component offers a capacitance of 47nF with a 20% tolerance and a DC rated voltage of 1.5kV (1500V), alongside an AC voltage rating of 300V. Operating across a temperature range of -40°C to 110°C, it has a 0.8mm lead diameter and a 22.5mm lead pitch. The capacitor is RoHS compliant and designed for bulk packaging.
PackageRadial
Capacitance47nF
Voltage Rating300V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32023A3473M000 technical specifications.
General
Capacitance
47nF
Package/Case
Radial
Dielectric
PP
Dielectric Material
Polypropylene
Height
6mm
Lead Diameter
0.8mm
Lead Pitch
22.5mm
Lead/Base Style
Straight
Length
26.5mm
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
720
Packaging
Bulk
Ratings
Y2
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B32023
Termination
PC Pins
Tolerance
20%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
1.5kV
Width
15mm
Compliance
RoHS
Compliant
Datasheet
TDK B32023A3473M000 Datasheet
Download the complete datasheet for TDK B32023A3473M000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

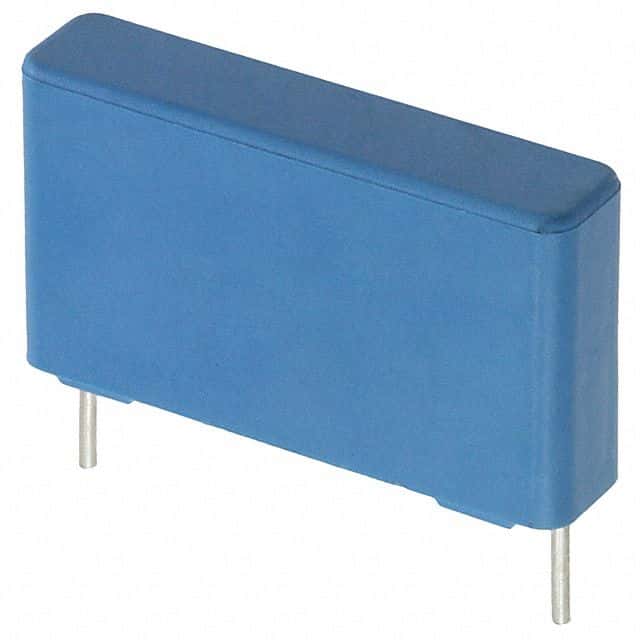

Product Images
