Radial film capacitor with 100nF capacitance and 250V DC rating. Features PET dielectric, 10% tolerance, and a maximum operating temperature of 125°C. Through-hole mounting with a 7.5mm lead pitch and 0.5mm lead diameter. Dimensions are 10mm length, 4mm depth, and 8.5mm height. Packaged in tape and reel, this RoHS compliant component is suitable for automotive applications.
PackageRadial
Voltage250V
Capacitance100nF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32520C3104K189 technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 4mm |
| Dielectric | PET |
| Dielectric Material | PET |
| Height | 8.5mm |
| Height - Seated (Max) | 0.335inch |
| Lead Diameter | 0.5mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Length | 10mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | B32520 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 250V |
| Voltage Rating (AC) | 160V |
| DC Rated Voltage | 250V |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32520C3104K189 Datasheet
Download the complete datasheet for TDK B32520C3104K189 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

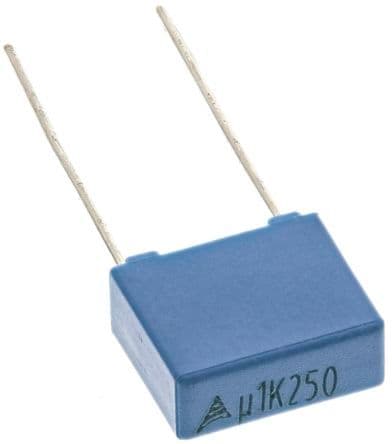

Product Images
