TDK
B32522C1105K000
Film Capacitor, Polyester And Polyethylene Terephthalate, 100V, 10% +Tol, 10% -Tol, 1uF, Through Hole Mount, METALLIZED POLYESTER FILM CAPACITOR
PackageRadial
Capacitance1uF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32522C1105K000 technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5mm |
| Dielectric | PET |
| Dielectric Material | PET |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 18mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | B32522 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32522C1105K000 Datasheet
Download the complete datasheet for TDK B32522C1105K000 to view detailed technical specifications.
No datasheet is available for this part.

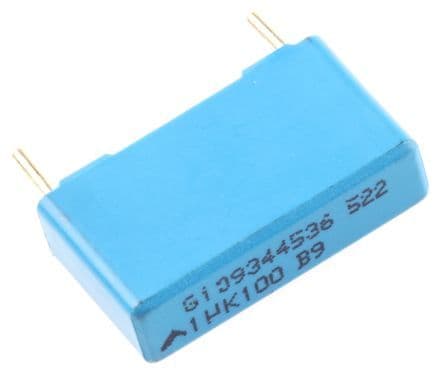

Product Images
