Radial metallized polyester film capacitor with 1uF capacitance and 63V DC rated voltage. Features a 10% tolerance, 0.5mm lead diameter, and 5mm lead pitch for through-hole mounting. Operating temperature range spans -55°C to 125°C. This RoHS compliant component is packaged on tape and reel.
PackageRadial
Capacitance1uF
Voltage Rating63V
Quick Jump:
Technical Specifications
TDK B32529C0105K189 technical specifications.
General
Capacitance
1uF
Package/Case
Radial
Construction
RADIAL
Depth
4.5mm
Dielectric
PET
Dielectric Material
PET
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
5mm
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B32529
Termination
PC Pins
Tolerance
10%
Voltage Rating
63V
Voltage Rating (AC)
40V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
TDK B32529C0105K189 Datasheet
Download the complete datasheet for TDK B32529C0105K189 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

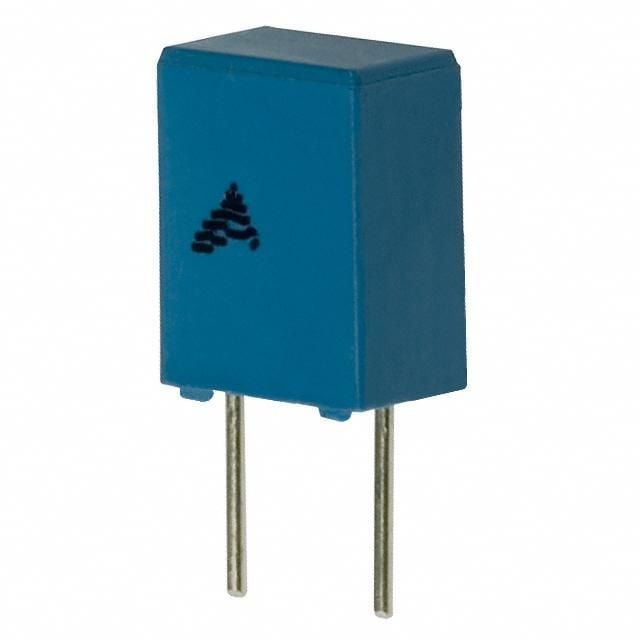

Product Images
