Technical Specifications
TDK B32529C0152K000 technical specifications.
General
| Capacitance | 1.5nF |
| Package/Case | Radial |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 10% |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 40V |
| DC Rated Voltage | 63V |
| Width | 7.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32529C0152K000 Datasheet
Download the complete datasheet for TDK B32529C0152K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

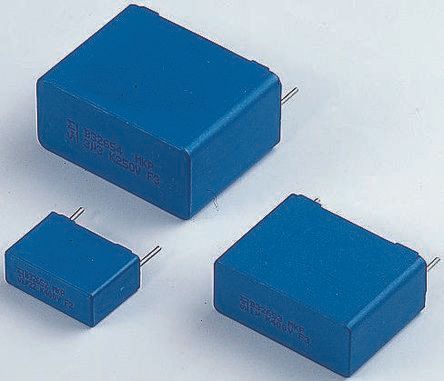

Product Images
