General purpose radial film capacitor featuring a 220nF capacitance and 100V DC rating. Constructed with PET dielectric, it offers a 10% tolerance and operates across a -55°C to 125°C temperature range. The component has a 5mm lead pitch and dimensions of 7.2mm (L) x 3.5mm (D) x 8mm (H), with tin-plated radial leads for through-hole mounting.
PackageRadial
Capacitance220nF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32529C1224K289 technical specifications.
General
| Capacitance | 220nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 3.5mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Features | General Purpose |
| Height | 8mm |
| Height - Seated (Max) | 0.315inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Length | 6mm |
| Lead Pitch | 5mm |
| Length | 7.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | B32529 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 100V |
| Width | 0.138inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32529C1224K289 Datasheet
Download the complete datasheet for TDK B32529C1224K289 to view detailed technical specifications.
No datasheet is available for this part.

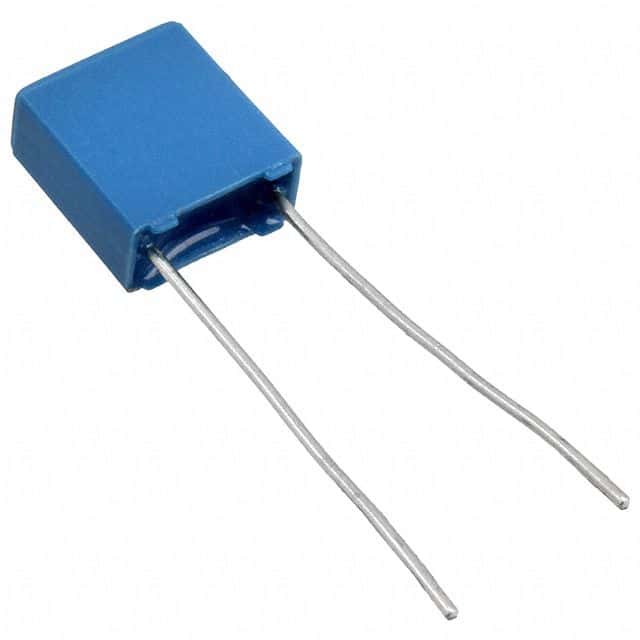

Product Images
