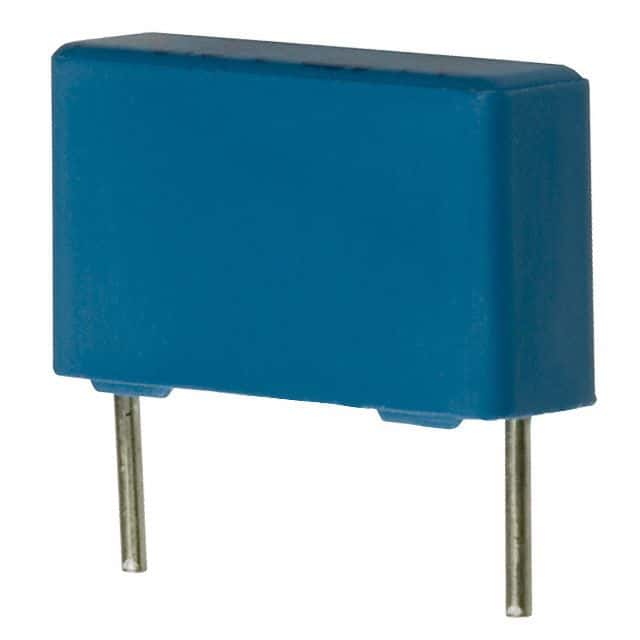

TDK
B32652A0103J000
CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1000V, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE
PackageRadial
Capacitance10nF
Voltage Rating1kV
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32652A0103J000 technical specifications.
General
Capacitance
10nF
Package/Case
Radial
Dielectric
PP
Dielectric Material
PP
Height - Seated (Max)
0.413inch
Lead Pitch
0.591inch
Length
0.709inch
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
4000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B32652
Termination
PC Pins
Tolerance
5%
Voltage Rating
1kV
Voltage Rating (AC)
250V
DC Rated Voltage
1kV
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
TDK B32652A0103J000 Datasheet
Download the complete datasheet for TDK B32652A0103J000 to view detailed technical specifications.
