TDK
B32652A4104J000
CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 400V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE
PackageRadial
Capacitance100nF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32652A4104J000 technical specifications.
General
Capacitance
100nF
Package/Case
Radial
Dielectric
PP
Dielectric Material
Polypropylene
Flammability Rating
UL94 V-0
Height - Seated (Max)
0.413inch
Lead Pitch
0.591inch
Length
0.709inch
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
4000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B32652
Termination
PC Pins
Tolerance
5%
Voltage Rating
400V
Voltage Rating (AC)
200V
DC Rated Voltage
400V
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
TDK B32652A4104J000 Datasheet
Download the complete datasheet for TDK B32652A4104J000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

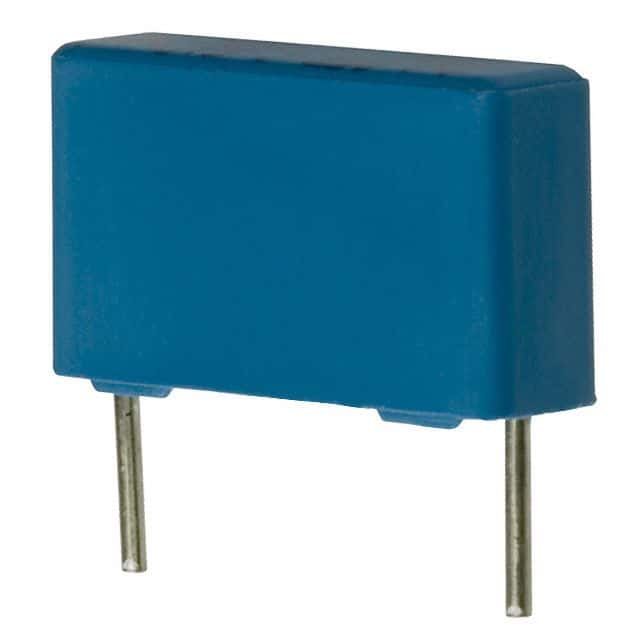

Product Images
