Radial leaded, through-hole mount metallized film capacitor featuring a polypropylene dielectric. This general-purpose fixed capacitor offers a capacitance of 220nF (0.22µF) with a 5% tolerance and a DC rated voltage of 630V, also rated for 250V AC. Operating across a temperature range of -55°C to 110°C, it has a 15mm lead pitch and 0.8mm lead diameter. The component is RoHS compliant and supplied in bulk packaging.
PackageRadial
Capacitance220nF
Voltage Rating630V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32652A6224J000 technical specifications.
General
| Capacitance | 220nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 9mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Height - Seated (Max) | 0.689inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 0.709inch |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32652 |
| Termination | PC Pins |
| Tolerance | 5% |
| Voltage Rating | 630V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 630V |
| Width | 0.354inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32652A6224J000 Datasheet
Download the complete datasheet for TDK B32652A6224J000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

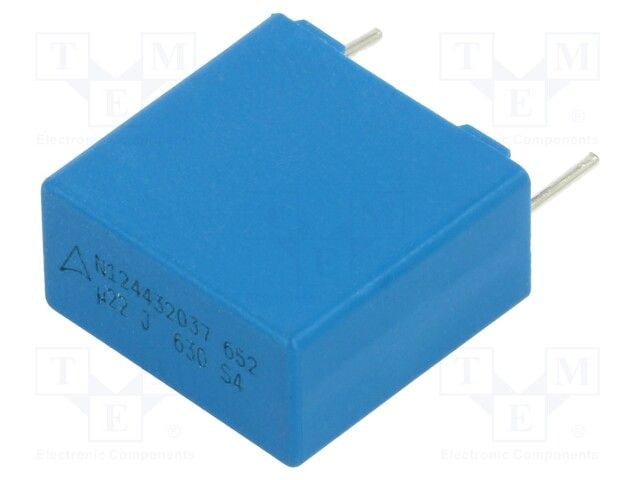

Product Images
