TDK
B32653A7104K000
CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE
PackageRadial
Capacitance100nF
Voltage Rating1.25kV
Quick Jump:
Technical Specifications
TDK B32653A7104K000 technical specifications.
General
Capacitance
100nF
Package/Case
Radial
Dielectric
PP
Dielectric Material
Polypropylene
Lead Pitch
22.5mm
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
B32653
Termination
PC Pins
Tolerance
10%
Voltage Rating
1.25kV
Voltage Rating (AC)
500V
DC Rated Voltage
1.25kV
Compliance
RoHS
Compliant
Datasheet
TDK B32653A7104K000 Datasheet
Download the complete datasheet for TDK B32653A7104K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

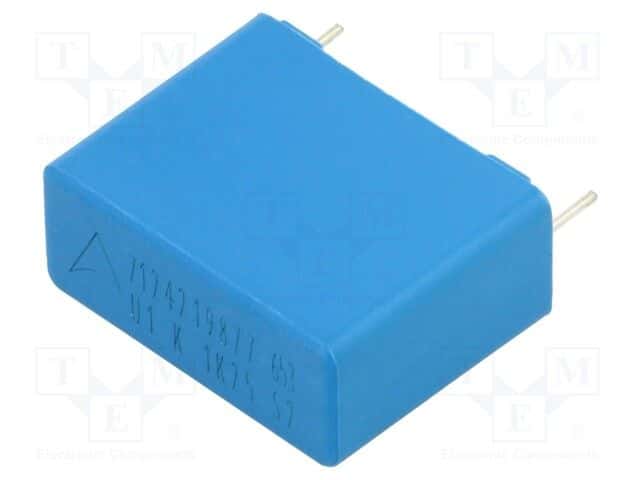

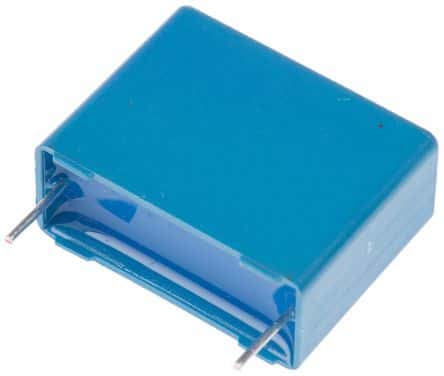

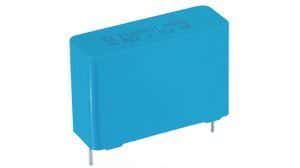

Product Images
