Radial metallized film capacitor with 100nF capacitance and 10% tolerance. Features a polypropylene dielectric, 630V DC rated voltage, and 200V AC rated voltage. Operating temperature range from -55°C to 125°C. Radial leads with 10mm pitch, 0.6mm diameter, and 6mm length. Dimensions: 13mm length, 5mm width, 5mm depth, 11mm height. Dissipation factor is 1%, with a life expectancy of 200,000 hours.
PackageRadial
Voltage630V
Capacitance100nF
Voltage Rating630V
Quick Jump:
Technical Specifications
TDK B32671P6104K000 technical specifications.
General
| Capacitance | 100nF |
| Package/Case | Radial |
| Depth | 5mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Dissipation Factor | 1% |
| Height | 11mm |
| Lead Diameter | 0.6mm |
| Lead Length | 6mm |
| Lead Pitch | 10mm |
| Lead/Base Style | Straight |
| Length | 13mm |
| Life (Hours) | 200000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PFC |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 630V |
| Voltage Rating | 630V |
| Voltage Rating (AC) | 200V |
| DC Rated Voltage | 630V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32671P6104K000 Datasheet
Download the complete datasheet for TDK B32671P6104K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

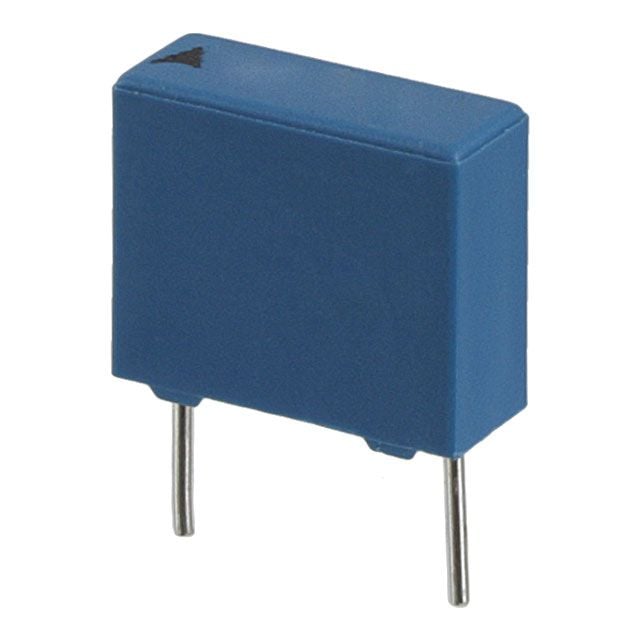

Product Images
