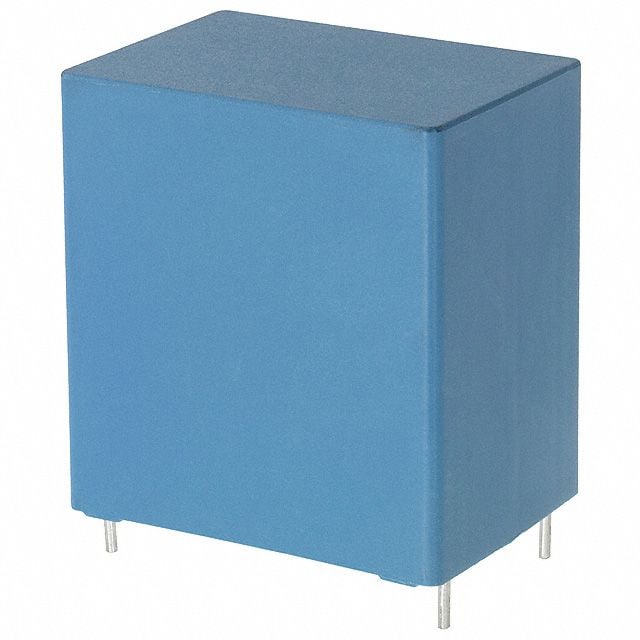

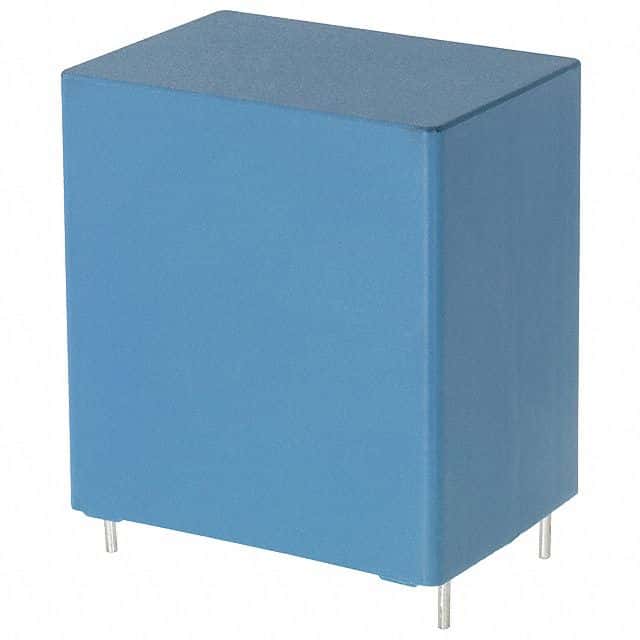

The B32776G4406K000 is a 40uF capacitor with a voltage rating of 450V and a tolerance of 10%. It has a radial package and is mounted through a hole. The capacitor operates within a temperature range of -40°C to 105°C and is compliant with RoHS regulations. The dielectric material is polypropylene (PP) with an equivalent series resistance (ESR) of 5 milliohms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B32776G4406K000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 40uF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 5mR |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32776 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| RoHS | Compliant |
