General purpose film capacitor with 40µF capacitance and 1.1kV DC rated voltage. Features polypropylene dielectric, 10% tolerance, and low 3.5mΩ ESR. Designed for through-hole mounting with radial package, 52.5mm lead pitch, and 1.2mm lead diameter. Operates from -40°C to 105°C with a 100,000-hour life expectancy. Dimensions are 57.5mm (L) x 35mm (W) x 50mm (H).
PackageRadial
Capacitance40uF
Voltage Rating920V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32778G0406K000 technical specifications.
General
| Capacitance | 40uF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| ESR (Equivalent Series Resistance) | 3.5mR |
| Height | 50mm |
| Lead Diameter | 1.2mm |
| Lead Pitch | 52.5mm |
| Length | 57.5mm |
| Life (Hours) | 100000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 27 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B32778 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 920V |
| Voltage Rating (AC) | 920V |
| DC Rated Voltage | 1.1kV |
| Width | 35mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32778G0406K000 Datasheet
Download the complete datasheet for TDK B32778G0406K000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

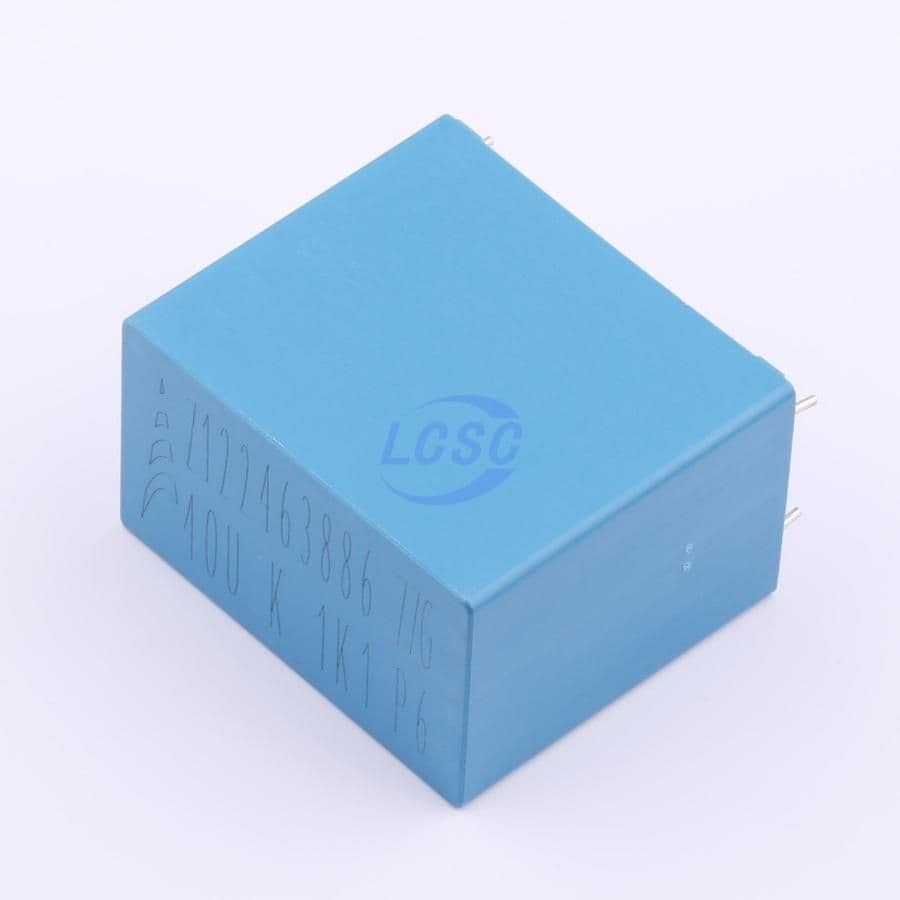

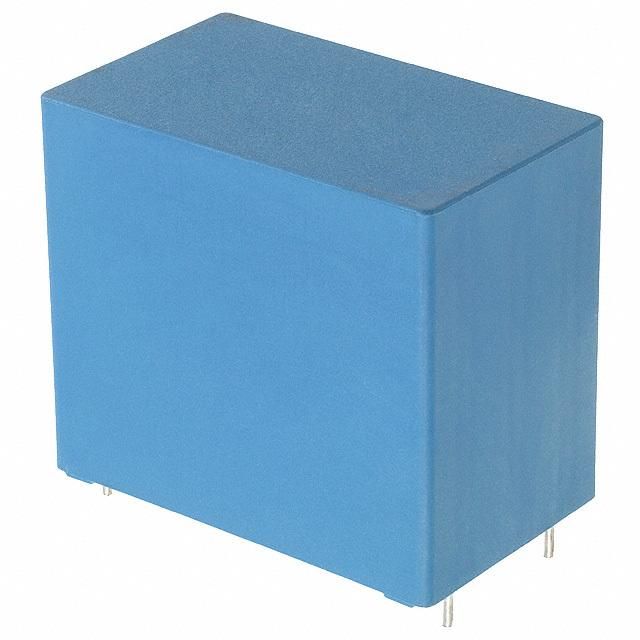

Product Images
