Radial film capacitor with 3.5µF capacitance and 10% tolerance, rated for 1kV DC and 400V AC. Features a PP dielectric, 13mΩ ESR, and a 37.5mm lead pitch. Designed for through-hole mounting with straight PC pins, operating across a temperature range of -40°C to 105°C. Dimensions include a 24mm depth, 1.634-inch length, and 0.945-inch width.
PackageRadial
Capacitance3.5uF
Voltage Rating1kV
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32796T4355K technical specifications.
General
| Capacitance | 3.5uF |
| Package/Case | Radial |
| Depth | 24mm |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 13mR |
| Height - Seated (Max) | 0.748inch |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Pitch | 37.5mm |
| Lead/Base Style | Straight |
| Length | 1.634inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 195 |
| Packaging | Bulk |
| Series | B32796 |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 1kV |
| Width | 0.945inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32796T4355K Datasheet
Download the complete datasheet for TDK B32796T4355K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

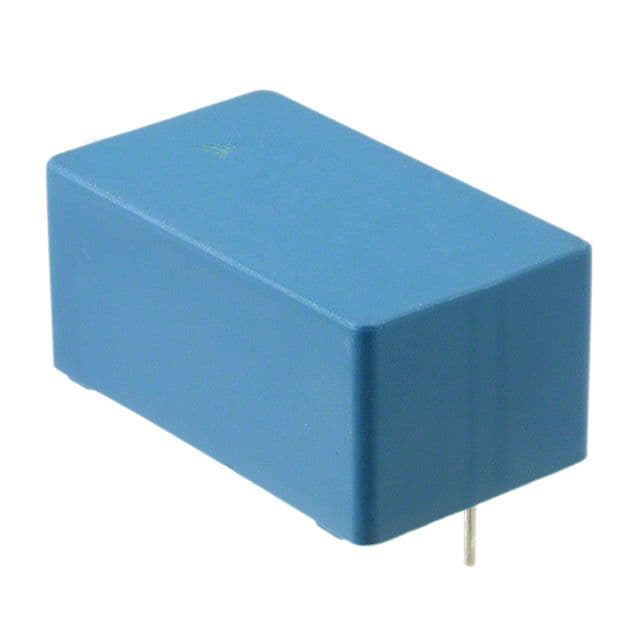

Product Images
