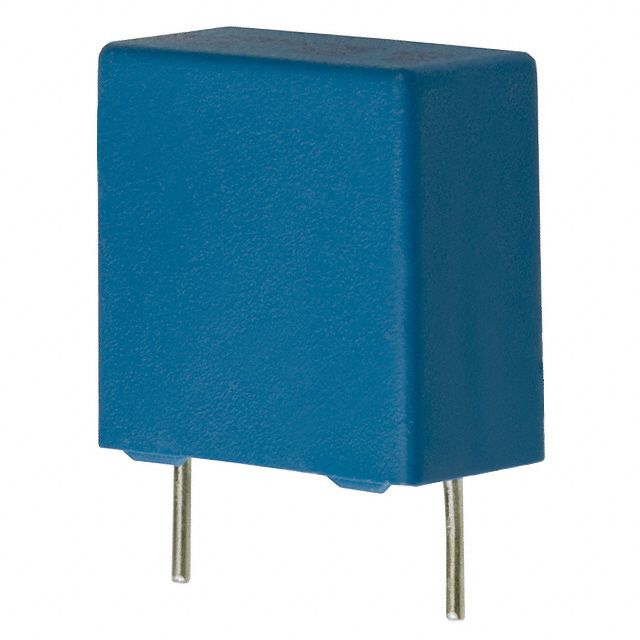

Radial-leaded, through-hole mount metallized polypropylene film capacitor with a capacitance of 470nF and a DC voltage rating of 760V. Features a 20% tolerance, 0.8mm lead diameter, and 22.5mm lead pitch. Operates within a temperature range of -40°C to 110°C. This RoHS compliant component is designed for general applications.
PackageRadial
Capacitance470nF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32913A3474M000 technical specifications.
General
Capacitance
470nF
Package/Case
Radial
Construction
RADIAL
Depth
10.5mm
Dielectric
PP
Dielectric Material
PP
Lead Diameter
0.8mm
Lead Pitch
22.5mm
Length
26.5mm
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Ratings
X1
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
B32913
Termination
PC Pins
Tolerance
20%
Voltage Rating (AC)
330V
DC Rated Voltage
760V
Compliance
RoHS
Compliant
Datasheet
TDK B32913A3474M000 Datasheet
Download the complete datasheet for TDK B32913A3474M000 to view detailed technical specifications.
