Metallized polypropylene film capacitor with 1.5µF capacitance and 20% tolerance. Features a 305VAC / 630VDC voltage rating, operating temperature range of -40°C to 105°C, and radial leaded, through-hole mounting with a 22.5mm lead pitch. Dimensions include a 12mm depth, 26.5mm length, and 12mm width. Lead diameter is 0.8mm.
PackageRadial
Capacitance1.5uF
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B32923C3155M189 technical specifications.
General
| Capacitance | 1.5uF |
| Package/Case | Radial |
| Depth | 12mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 22.5mm |
| Length | 1.043inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | B32923 |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating (AC) | 305V |
| DC Rated Voltage | 630V |
| Width | 0.472inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK B32923C3155M189 Datasheet
Download the complete datasheet for TDK B32923C3155M189 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

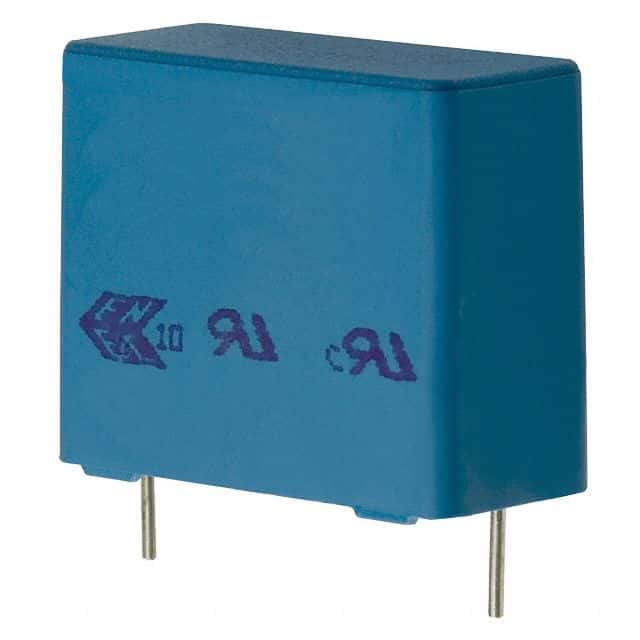

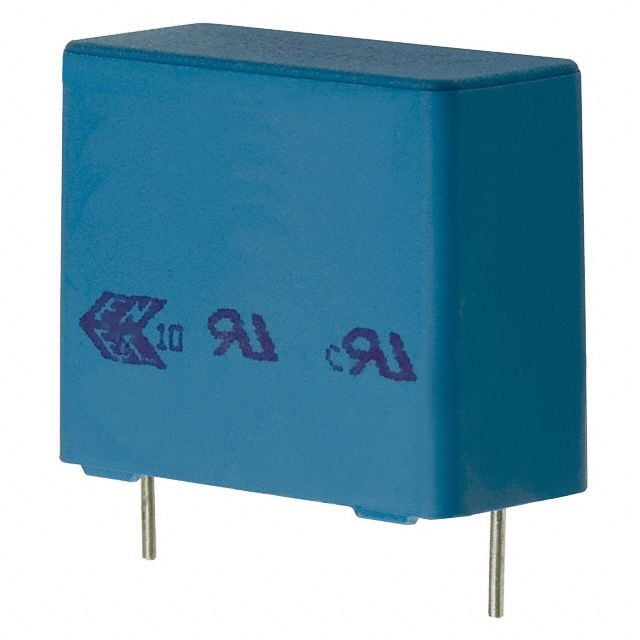

Product Images
