This 50V ceramic capacitor has a capacitance of 100pF with a tolerance of 5%. It is packaged in an 0805 SMD case and is rated for operation between -55°C and 125°C. The capacitor is lead-free and compliant with standard packaging and termination options.
Package0805
Voltage50V
Capacitance100pF
Voltage Rating50V
Quick Jump:
Technical Specifications
TDK B37940K5101J60 technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | NP0 |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000194oz |
Compliance
| RoHS | Compliant |
Datasheet
TDK B37940K5101J60 Datasheet
Download the complete datasheet for TDK B37940K5101J60 to view detailed technical specifications.
No datasheet is available for this part.

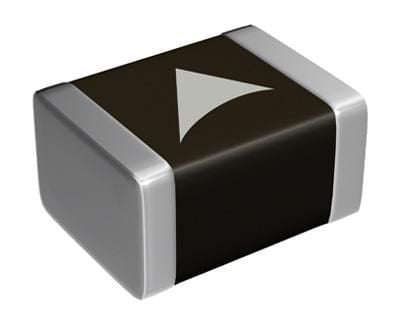

Product Images
