Technical Specifications
TDK B43456A9338M technical specifications.
General
| Capacitance | 3.3mF |
| Diameter | 64.3mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 34mR |
| Height | 105.7mm |
| Lead Pitch | 1.122inch |
| Life (Hours) | 12000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Clamp |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 11A |
| Termination | Screw |
| Tolerance | 20% |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B43456A9338M Datasheet
Download the complete datasheet for TDK B43456A9338M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

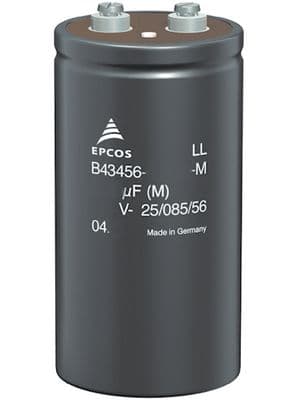

Product Images
