Standard aluminum electrolytic capacitor with 330µF capacitance and 450V DC rated voltage. Features 20% tolerance, 410mΩ ESR, and 490mΩ impedance. Radial package with 30mm diameter, 50mm height, and 10mm lead pitch, designed for through-hole mounting. Operates from -40°C to 105°C, offering 1600mA ripple current capability and 3000 hours of life at rated conditions. RoHS compliant.
PackageRadial
Capacitance330uF
Voltage Rating450V
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B43504A5337M000 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 30mm |
| ESR (Equivalent Series Resistance) | 410mR |
| Height | 50mm |
| Impedance | 490mR |
| Lead Pitch | 10mm |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B43504 |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B43504A5337M000 Datasheet
Download the complete datasheet for TDK B43504A5337M000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

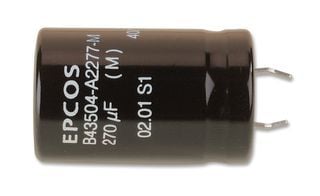

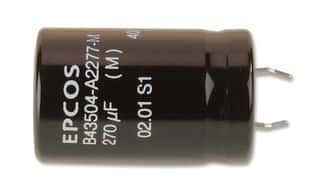

Product Images
