Technical Specifications
TDK B43508B5337M000 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 0.2% |
| ESR (Equivalent Series Resistance) | 370mR |
| Height | 40mm |
| Impedance | 530mR |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 80 |
| Packaging | Bulk |
| Ripple Current | 1.56A |
| RoHS Compliant | Yes |
| Series | B43508 |
| Termination | Snap in |
| Test Frequency | 100Hz |
| Tolerance | 20% |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B43508B5337M000 Datasheet
Download the complete datasheet for TDK B43508B5337M000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

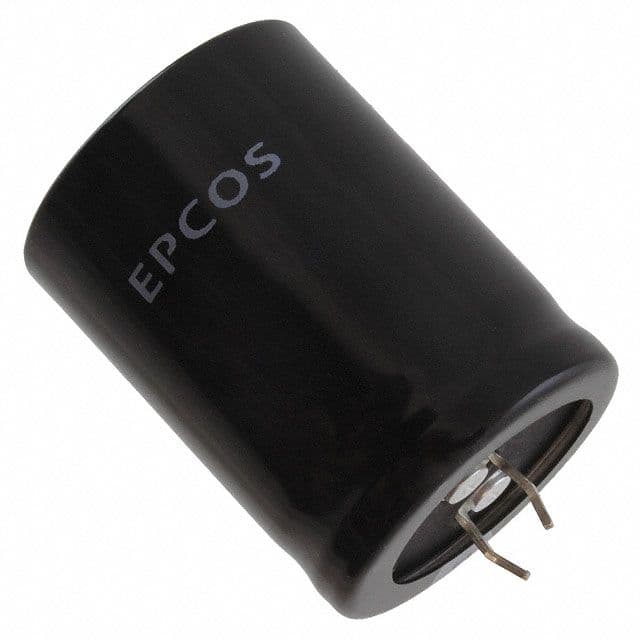

Product Images
