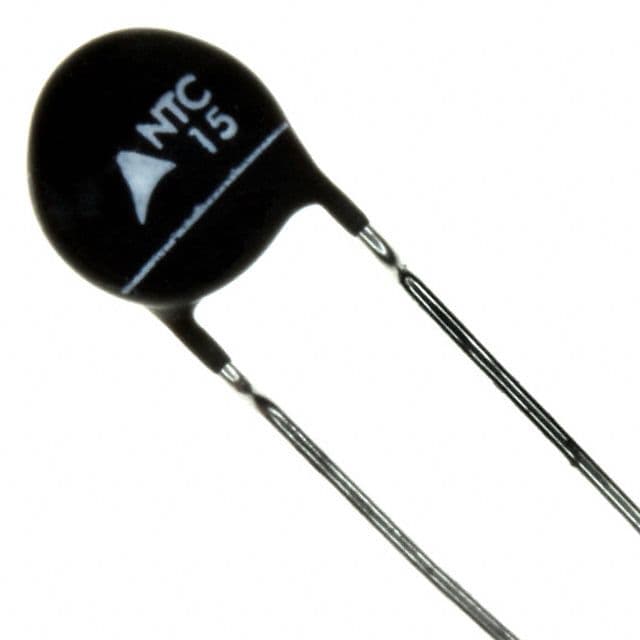

This TDK thermistor features a radial package with a current rating of 1.8A and a tolerance of 20%. It operates within a temperature range of -55°C to 170°C and is compliant with RoHS regulations. The thermistor is packaged in bulk and has a lead length of 25mm, with a diameter of 8.5mm and a depth of 6mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B57153S0150M000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Package/Case | Radial |
| Current Rating | 1.8A |
| Depth | 6mm |
| Diameter | 8.5mm |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -55°C |
| Operating Supply Voltage | 265V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S153 |
| Thickness | 6mm |
| Tolerance | 20% |
| RoHS | Compliant |
