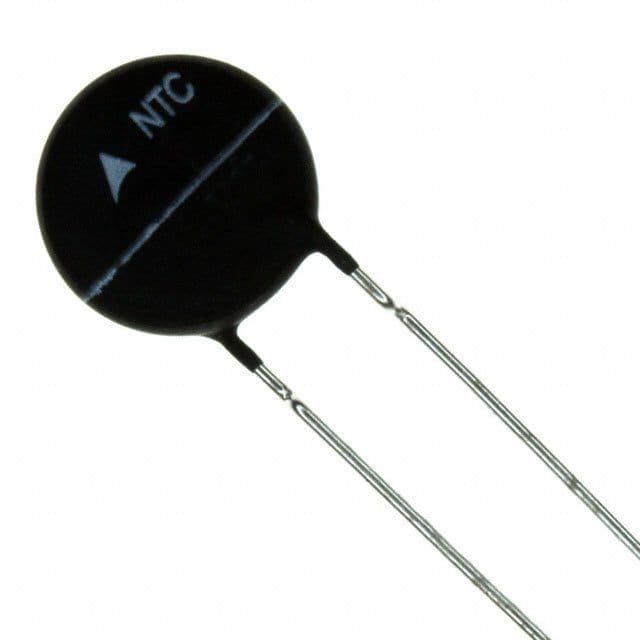

This 11.5mm radial resistor is designed for through hole mounting and has a maximum operating temperature of 170°C. The resistor has a current rating of 1.5A and a dissipation factor of 10%. It is available in a package quantity of 4000 and is packaged on a tape and reel. The resistor is RoHS compliant and has a resistance of 120R with a tolerance of 20%. It measures 11.5mm in diameter and 6mm in width, with a lead diameter of 0.6mm and a lead pitch of 5mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B57236S0121M051 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Current Rating | 1.5A |
| Diameter | 11.5mm |
| Dissipation Factor | 10% |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Resistance | 120R |
| RoHS Compliant | Yes |
| Series | S236 |
| Tolerance | 20% |
| Weight | 0.035274oz |
| Width | 6mm |
| RoHS | Compliant |
