Technical Specifications
TDK B57237S229M54 technical specifications.
General
| Approvals | UL |
| Current Rating | 7A |
| Diameter | 0.59inch |
| Dissipation Factor | 17% |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 0.295inch |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Resistance | 2.2R |
| Series | S237 |
| Thickness | 7mm |
| Tolerance | 20% |
| Weight | 0.070548oz |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B57237S229M54 Datasheet
Download the complete datasheet for TDK B57237S229M54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

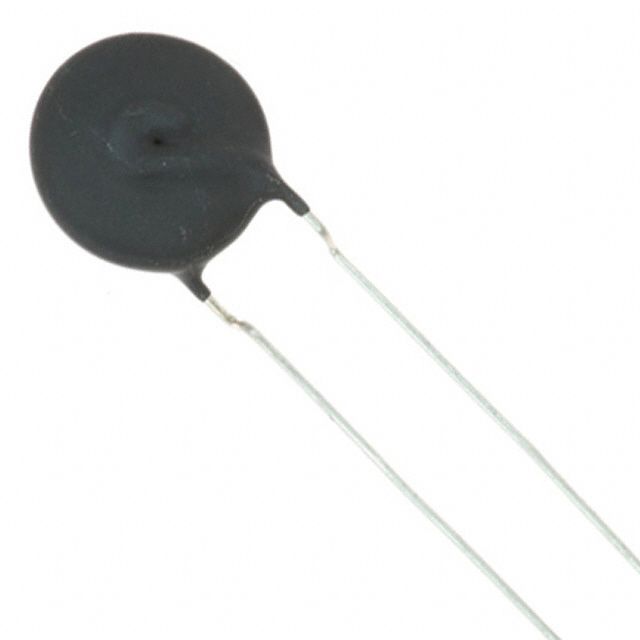

Product Images
