Technical Specifications
TDK B57351V5103J060 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Height | 0.9mm |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 180mW |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| Response Time | 10s |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q200 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B57351V5103J060 Datasheet
Download the complete datasheet for TDK B57351V5103J060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

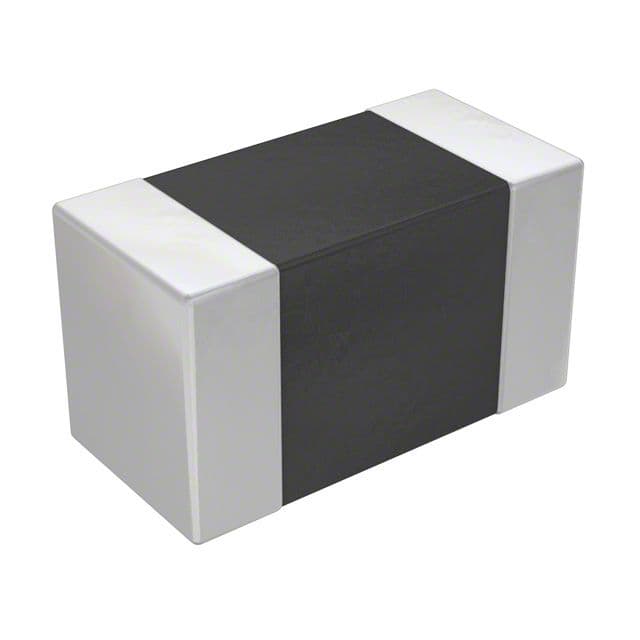

Product Images
