This radial lead free thermistor has a resistance of 3.5 ohms and a tolerance of 25%. It is designed to operate within a temperature range of 0 to 60 degrees Celsius. The thermistor is packaged in bulk with 500 units per package. It is compliant with RoHS regulations and is suitable for through hole mounting.
PackageRadial
Resistance3.5R
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B59810C0130A070 technical specifications.
General
| Package/Case | Radial |
| Height | 25.5mm |
| Hold Current | 650mA |
| Lead Free | Lead Free |
| Max Current Rating | 7A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Resistance | 3.5R |
| RoHS Compliant | Yes |
| Termination | Radial |
| Thickness | 5mm |
| Tolerance | 25% |
| Trip Current | 980mA |
| Width | 22mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B59810C0130A070 Datasheet
Download the complete datasheet for TDK B59810C0130A070 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

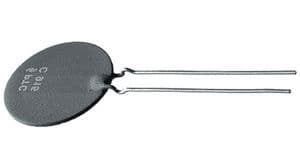

Product Images
