Radial leaded Metal Oxide Varistor (MOV) for circuit protection. Features 275VAC/350VDC maximum voltage rating, 430V varistor voltage, and 2.5kA maximum surge current. Offers 25A clamping current and 710V clamping voltage. Encased in a 12mm diameter, 5mm depth package with 7.5mm lead pitch, suitable for through-hole mounting. Operates within -40°C to 85°C and is RoHS compliant.
PackageMetal
Capacitance195pF
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B72210S0271K151 technical specifications.
General
| Capacitance | 195pF |
| Package/Case | Metal |
| Clamping Current | 25A |
| Clamping Voltage | 710V |
| Current Rating | 25A |
| Depth | 5mm |
| Diameter | 12mm |
| Energy | 43J |
| Height | 14.5mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Radial |
| Length | 12mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 2.5kA |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Standard |
| Termination | Radial |
| Tolerance | 10% |
| Varistor Voltage | 430V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 350V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B72210S0271K151 Datasheet
Download the complete datasheet for TDK B72210S0271K151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

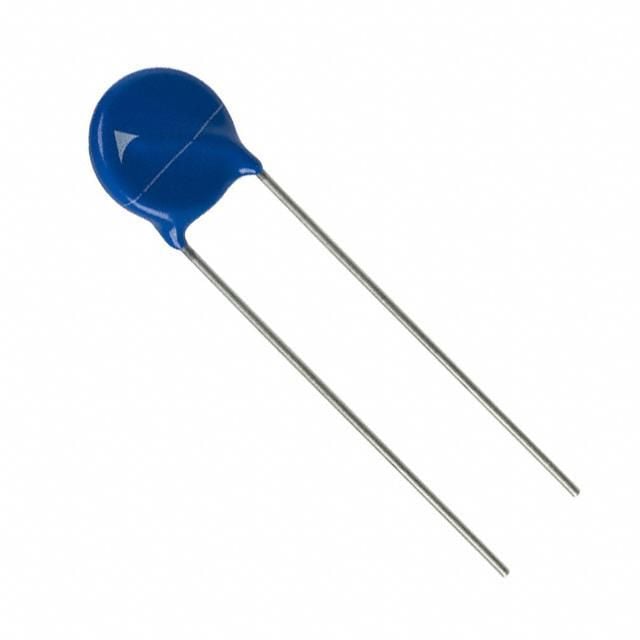

Product Images
