Radial leaded metal oxide varistor (MOV) for circuit protection. Features 360J energy rating, 100A clamping current, and 1.5kV clamping voltage. Offers 550V AC and 745V DC voltage ratings with a 910V varistor voltage and 10% tolerance. Through-hole mount design with a 10mm lead pitch. Operates from -40°C to 85°C.
PackageMetal
Capacitance320pF
Current Rating100A
MountingThrough Hole
Quick Jump:
Technical Specifications
TDK B72220S2551K101 technical specifications.
General
| Capacitance | 320pF |
| Package/Case | Metal |
| Clamping Current | 100A |
| Clamping Voltage | 1.5kV |
| Current Rating | 100A |
| Depth | 9mm |
| Energy | 360J |
| Height | 26mm |
| Lead Pitch | 10mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 10kA |
| Max Varistor Voltage | 1.001kV |
| Min Varistor Voltage | 819V |
| Max Voltage Rating (AC) | 550V |
| Max Voltage Rating (DC) | 745V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AdvanceD |
| Termination | Radial |
| Tolerance | 10% |
| Varistor Voltage | 910V |
| Voltage Rating (AC) | 550V |
| DC Rated Voltage | 745V |
| Voltage Tolerance | 10% |
| Weight | 0.17637oz |
| Width | 21.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B72220S2551K101 Datasheet
Download the complete datasheet for TDK B72220S2551K101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

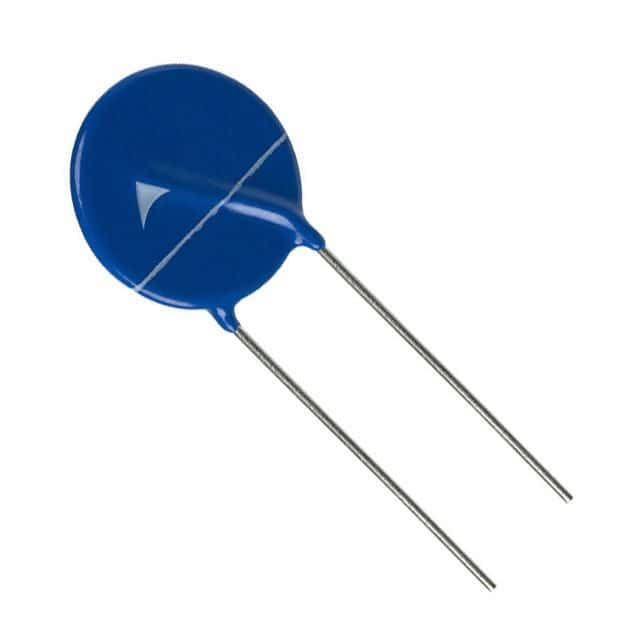

Product Images
