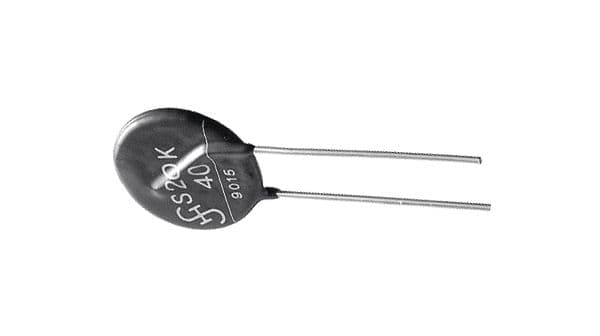

Radial SIDAC with 460VAC/615VDC max voltage rating, featuring 8kA max surge current and 100A clamping current. This component offers a 750V varistor voltage and 1.24kV clamping voltage, with a 10% voltage tolerance. Designed for through-hole mounting, it operates within a -40°C to 85°C temperature range and comes in bulk packaging. Key specifications include 195J energy absorption and 380pF capacitance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B72220S461K101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK B72220S461K101 technical specifications.
| Capacitance | 380pF |
| Package/Case | Radial |
| Clamping Current | 100A |
| Clamping Voltage | 1.24kV |
| Depth | 6.8mm |
| Energy | 195J |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8kA |
| Max Supply Voltage | 460V |
| Max Surge Current | 8kA |
| Max Voltage Rating (AC) | 460V |
| Max Voltage Rating (DC) | 615V |
| Mount | Through Hole |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Varistor Voltage | 750V |
| Voltage Rating | 516V |
| Voltage Rating (AC) | 460V |
| DC Rated Voltage | 615V |
| Voltage Tolerance | 10% |
| RoHS | Compliant |
Download the complete datasheet for TDK B72220S461K101 to view detailed technical specifications.
