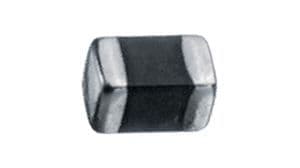

Bidirectional SIDAC for surface mount applications, featuring a 30V DC working voltage and 120V clamping voltage. This component offers a 1A clamping current and 15pF capacitance, housed in a compact 0603 package. Operating across a temperature range of -40°C to 85°C, it exhibits a 1uA leakage current and 50V reverse breakdown voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK B72500D0300H060 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK B72500D0300H060 technical specifications.
| Capacitance | 15pF |
| Package/Case | 0603 |
| Clamping Current | 1A |
| Clamping Voltage | 120V |
| Depth | 0.9mm |
| Direction | Bidirectional |
| Leakage Current | 1uA |
| Length | 1.75mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Min Varistor Voltage | 50V |
| Max Voltage Rating (DC) | 30V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 30V |
| Packaging | Cut Tape |
| Peak Pulse Current | 1A |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 50V |
| Reverse Standoff Voltage | 30V |
| RoHS Compliant | Yes |
| Size Code | 0603 |
| Working Voltage | 30V |
| RoHS | Compliant |
