Technical Specifications
TDK B81123C1152M000 technical specifications.
General
| Capacitance | 1.5nF |
| Package/Case | Radial |
| Dielectric | PP |
| Dielectric Material | PP |
| Flammability Rating | UL94 V-0 |
| Lead Pitch | 15mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Ratings | Y1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B81123 |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 500V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TDK B81123C1152M000 Datasheet
Download the complete datasheet for TDK B81123C1152M000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

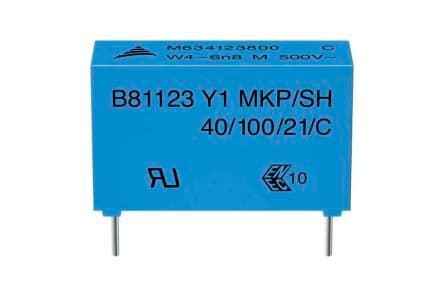

Product Images
