General purpose radial inductor featuring a ferrite core and 2 elements. Offers 15mH inductance with a tolerance of -30% to 50% at 10kHz. Rated for 900mA DC current and 250V AC voltage. Operates within a temperature range of -40°C to 125°C. Through-hole mounting with a 12.5mm lead pitch.
PackageRadial
Current Rating900mA
MountingThrough Hole, Radial
Inductance15mH
Quick Jump:
Technical Specifications
TDK B82731M2901A030 technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
Current Rating
900mA
DC Current
900mA
Depth
15mm
Height
20mm
Inductance
15mH
Inductance Tolerance
-30%
Lead Pitch
12.5mm
Lead/Base Style
Pin
Length
21mm
Max Current Rating
900mA
Max DC Current
900mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Through Hole, Radial
Number of Lines
2
Package Quantity
1600
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
10kHz
Series
B82731
Termination
Radial
Test Frequency
10kHz
Tolerance
50%
Voltage Rating (AC)
250V
Weight
0.282192oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
TDK B82731M2901A030 Datasheet
Download the complete datasheet for TDK B82731M2901A030 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

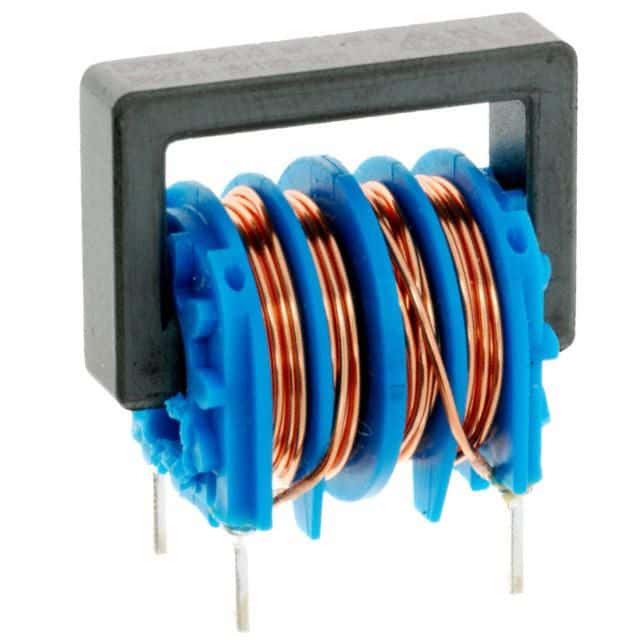

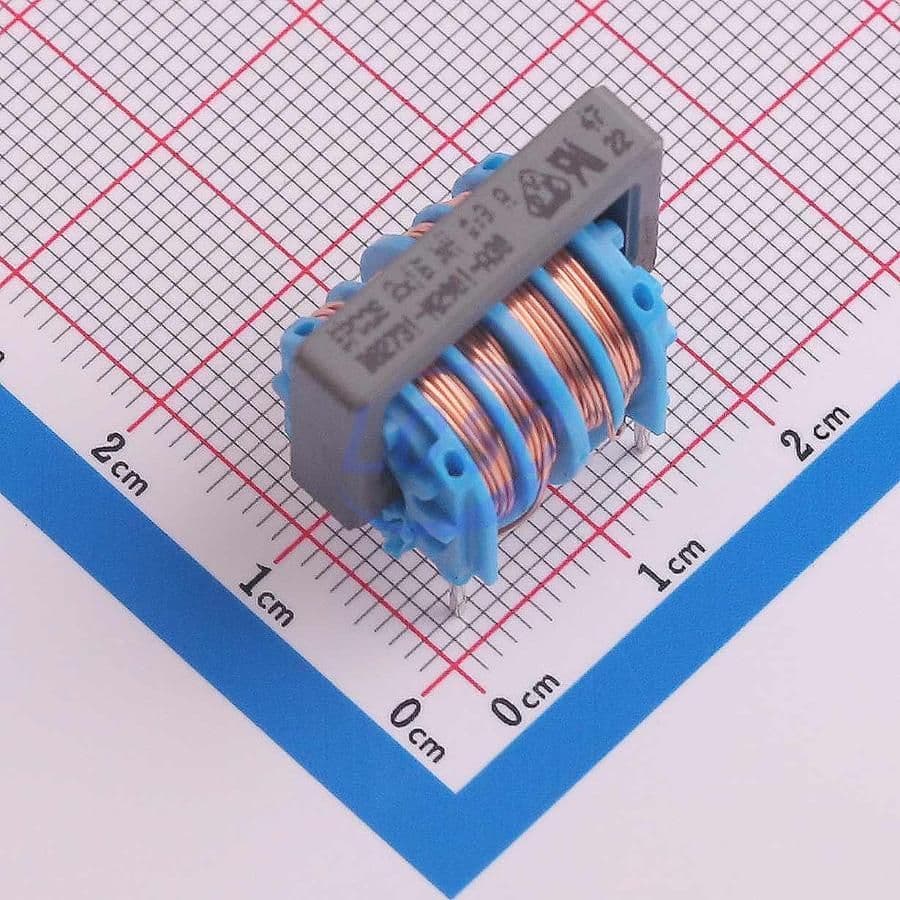

Product Images
