Surface mount data line filter featuring two lines and 150mA current rating. Offers 100µH inductance with a -30% tolerance, designed for operation between -55°C and 125°C. This component has a DC rated voltage of 80V and an AC voltage rating of 42V, with a series resistance of 1.5Ω. Encased in a 1812 (4532 metric) package, it is RoHS compliant and AEC-Q200 qualified.
Package1812
Voltage Rating42V
Current Rating150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK B82789C0104N002 technical specifications.
General
Case Code (Imperial)
1812
Case Code (Metric)
4532
Package/Case
1812
Core Material
Ferrite
Current Rating
150mA
Diameter
5.2mm
Height
3mm
Inductance
100uH
Inductance Tolerance
-30%
Length
4.5mm
Max Current Rating
150mA
Max DC Current
150mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Lines
2
Package Quantity
2500
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
RMS Current (Irms)
150mA
RoHS Compliant
Yes
Series
B82789
Series Resistance
1.5R
Termination
SMD/SMT
Test Frequency
50Hz
Test Voltage
250V
Tolerance
50%
Voltage Rating
42V
Voltage Rating (AC)
42V
DC Rated Voltage
80V
Weight
0.000952oz
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
TDK B82789C0104N002 Datasheet
Download the complete datasheet for TDK B82789C0104N002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

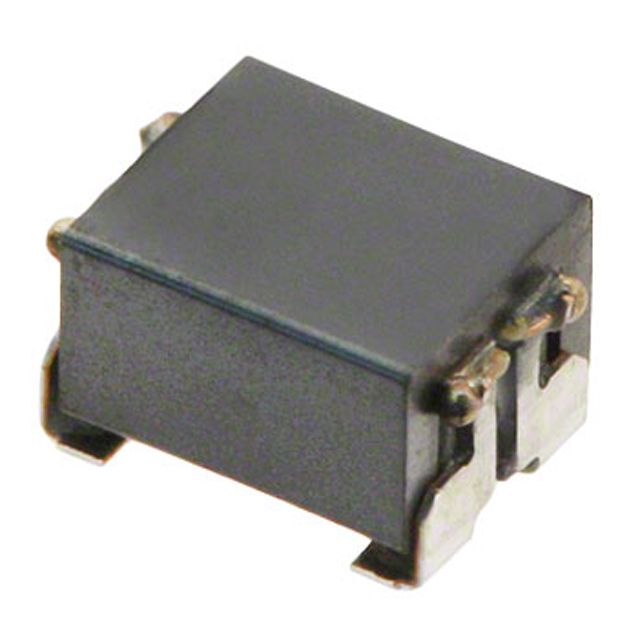

Product Images
