Dual common mode choke with 51µH inductance and 30% tolerance, designed for automotive applications. Features a 500mA current rating, 140mΩ maximum DC resistance, and a 100kHz self-resonant frequency. Encased in a 9mm x 6mm x 5.2mm SMD/SMT package with a ferrite core. Rated for 42V AC and 80V DC, with UL94 V-0 flammability. Supplied on tape and reel.
PackageSMD/SMT
Voltage Rating42V
Current Rating500mA
Inductance51uH
Quick Jump:
Technical Specifications
TDK B82790S513N201 technical specifications.
General
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current Rating | 500mA |
| DC Current | 500mA |
| DC Resistance-Max | 140MR |
| Depth | 6mm |
| Flammability Rating | UL94 V-0 |
| Height | 5.2mm |
| Inductance | 51uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 9mm |
| Max DC Current | 500mA |
| Military Standard | Not |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 100kHz |
| Series Resistance | 160mR |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Voltage Rating | 42V |
| Voltage Rating (AC) | 42V |
| DC Rated Voltage | 80V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK B82790S513N201 Datasheet
Download the complete datasheet for TDK B82790S513N201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

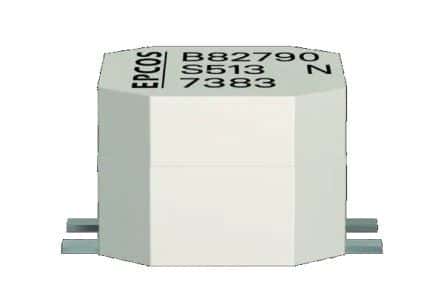

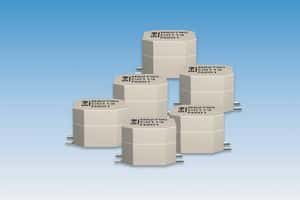

Product Images
